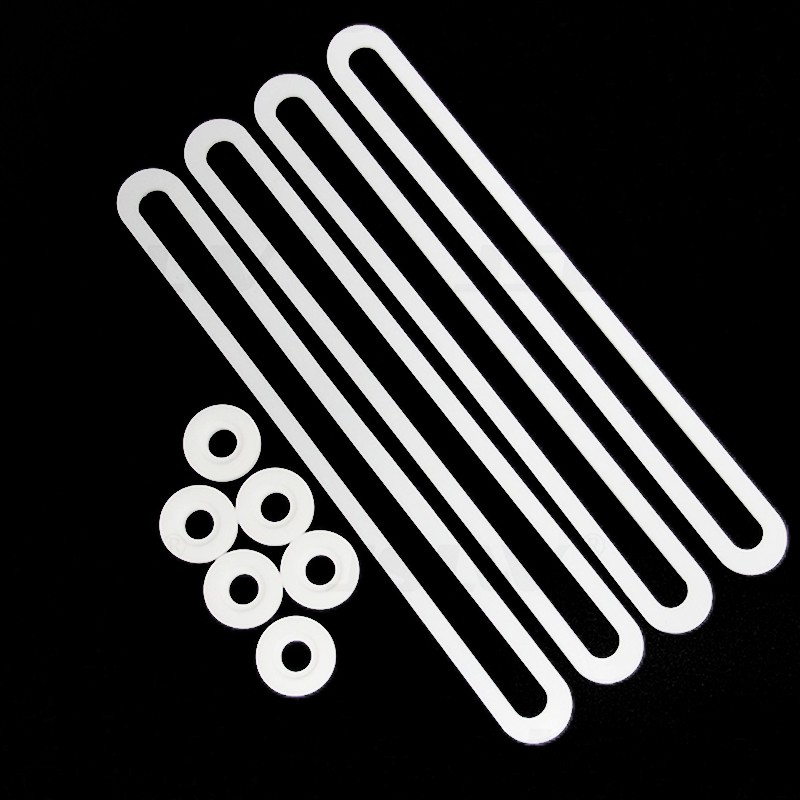

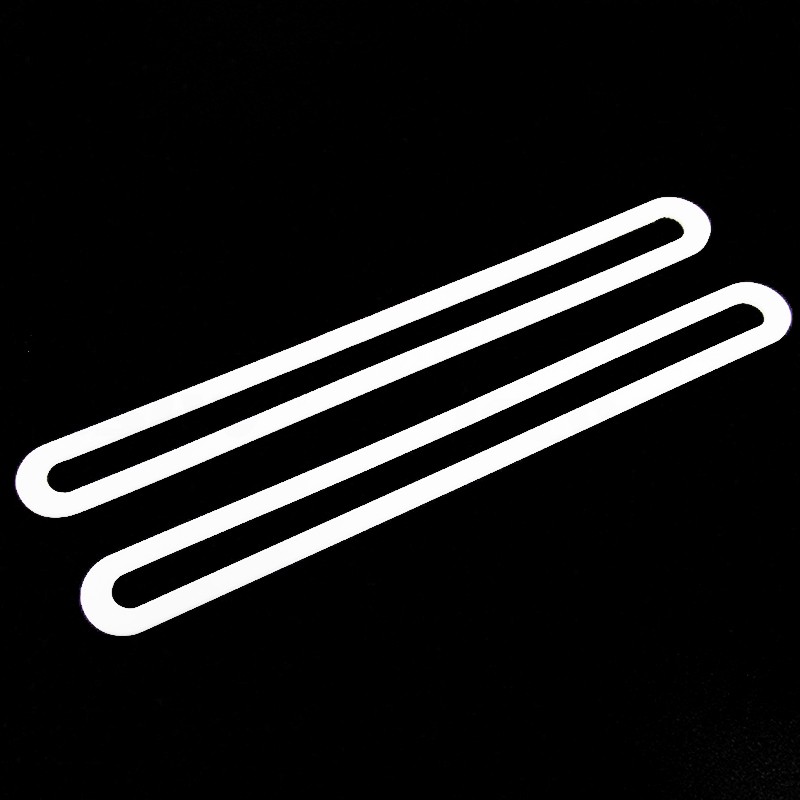

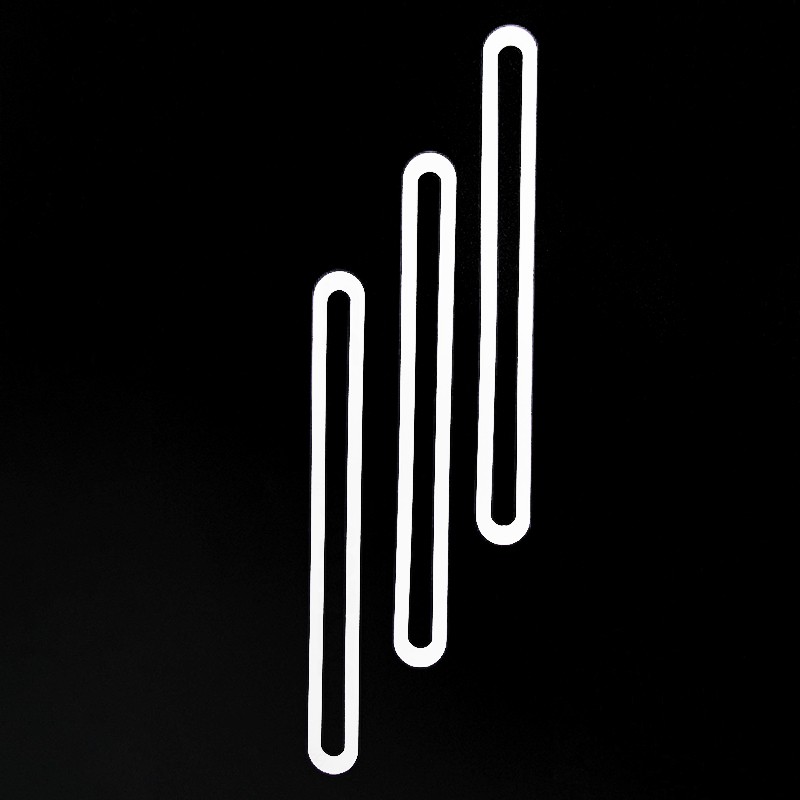

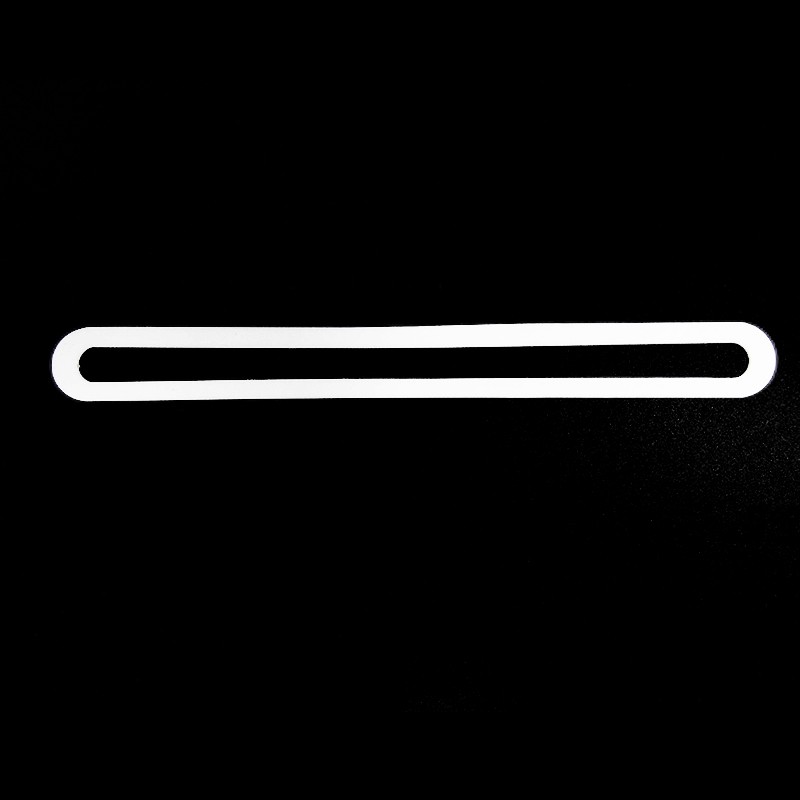

PTFE Gasket For Level Gauge

Product Item : HSLJ-009
Category： Reflex&Transparent Gauge Glass Gaskets
Material: PTFE
Thickness:1.5mm/2.0mm
Color:WHITE
Use: For Type A and Type B Level Gauge Glass
INQUIRY EMAIL

PTFE GASKET FOR LEVEL GAUGE

Material : PTFE

Thickness:1.5mm/2.0mm

Cushion gasket forms the seal between the front of the reflex or transaparent level gauge and the glass.

The same gasket fits both styles and is only differentiated by its type (Type A or B) and its size number (sizes 0 to 9).

These are cut on our CNC machine so have a very quick turnaround.

Features:

PTFE gasket, also known as PTFE or PTFE gasket, is made of pure PTFE sheet, and the temperature range is about -100~250ºC.
Tetrafluoro-gasket material has corrosion resistance, aging resistance, low friction coefficient and non-viscosity, wide temperature resistance range, good elasticity characteristics make it very suitable for the manufacture of high corrosion resistance requirements, use temperature higher than 100ºC sealing parts.The performance of the seal has a great impact on the efficiency and performance of the whole machine equipment.Such as machine, heat exchanger, high pressure vessel, large diameter vessel, valve, pump groove flange sealing parts, glass reaction pot, plane flange, large diameter flange sealing parts, shaft, piston rod, valve rod, worm pump, pull rod seals and so on.

Product introduction and application:

PTFE is commonly known as "the king of plastics". It has excellent chemical stability, corrosion resistance, sealing, high lubrication, non sticky, electrical insulation and good aging resistance. It can work for a long time from + 250 ºCto - 180 ºC.Suitable media include water, oil, acid solution,alkali solution and almost all chemical components.

Product advantages:
Flange special ptfe gasket performance advantages
1.High temperature resistance -- operating temperature up to 250ºC.
2.Low temperature resistance -- good mechanical toughness;The elongation can be maintained at 5% even if the temperature drops to -196ºC.
3.Corrosion resistance - inert to most chemicals and solvents, strong acid and alkali, water and various organic solvents.
4.Weather resistance - best aging life in plastics.
5.High lubrication - is the lowest friction coefficient of solid materials.
6.Nonadhesion - the minimum surface tension in a solid material that does not adhere to anything.

Apply :
